Basic Info

Model No.:  A018

Product Description

Model NO.: A018 Operation: Electric Type Arc-extinguishing Medium: Air Structure: MCCB Type: Circuit Breaker Certification: ISO9001-2000 Trademark: shengyuan Origin: Jiangsu Taixing Breaking Capacity: Low Voltage Circuit Breakers Speed: Normal Type Circuit breaker Installation: Insert Poles Number: 4 Function: Circuit-Breaker Failure Protection Occasion: out Door Transport Package: Bubble Chamber out Door Vacuum Circuit Breaker Product description
ISO9001
COM;DOM
Ormazabal breaker

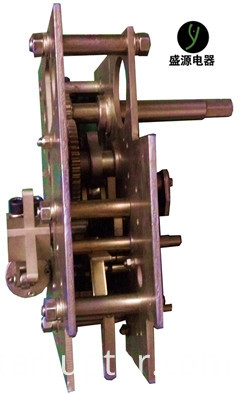

Circuit breaker Spring operating mechanism is used to control the storage of the spring tension and contraction of the energy stored in the control of the spring, the storage of the spring energy storage is on the motor, and its closing, the switching operation is closed, the brake coil control.
Product advantage:
1. the service life of the breaker is reached 10000 times.
2. the performance of the circuit breaker meets the requirements of the ontology technology.
3. the safety of the motor, the magnetic switch is reached 20000 times.
4. gate latch, imported materials, special processing, ensure the hardness and toughness.

Serial number
Technical parameters Model
1 Average gate speed m/s 1~1.4
2 Average closing speed m/s 0.4~0.8
3 Contact distance mm 8~10

Contact us if you need more details on Circuit breaker mechanism. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Circuit Breaker、Breaker. If these products fail to match your need, please contact us and we would like to provide relevant information.
