Small Gear Rotary Damper For Electrical products

Small Gear Rotary Damper For Electrical products

    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 100 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: Standard export package
    Productivity: 1000000
    Brand: ABD
    Transportation: Ocean,Air
    Place of Origin: China
    Certificate: ISO9001:2015
    HS Code: 3926901000
    Port: Shenzhen

Basic Info

Model No.: DC10A

Product Description

Small gear damper for electrical products. ABD small gear rotary dampers are used to dampen drives, control speed, and many other applications.ABD silicone oil viscous dampers are available in either fixed rate or adjustable models. The damping direction of the small gear rotary dampers with continuous rotation can be clockwise, counter clockwise, or in both directions. In electrical products rotary damper with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The gear rotary damping moment is determined by the viscosity of the fluid and the size of the orifice or gap.

Welcome to purchase high quality and precise small gear rotary damper for electrical products from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. And we offer customers the most competitive price. If you are interested in any of electrical products small gear dampers or would like to discuss a custom order, please feel free to contact us.


Gear Damper For Electrical Products

Specifications



Applied Torque(T)
(gf.cm )
200 20±6gf.cm
400 40±10gf.cm
600 60±15gf.cm

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min(Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50

5.Storage temperature:-30~80

Damper For Electrical Products

Materials



3 Shaft POM
2 Cover PC
1 Shell PC
NO. Description Material


Gear specification
Tooth profile Full depth tooth
Pressure angle 25°
Module 0.6
Number of teeth A:11, B:10
P.C.D.(mm) A: Ø6.6 B: Ø6.6

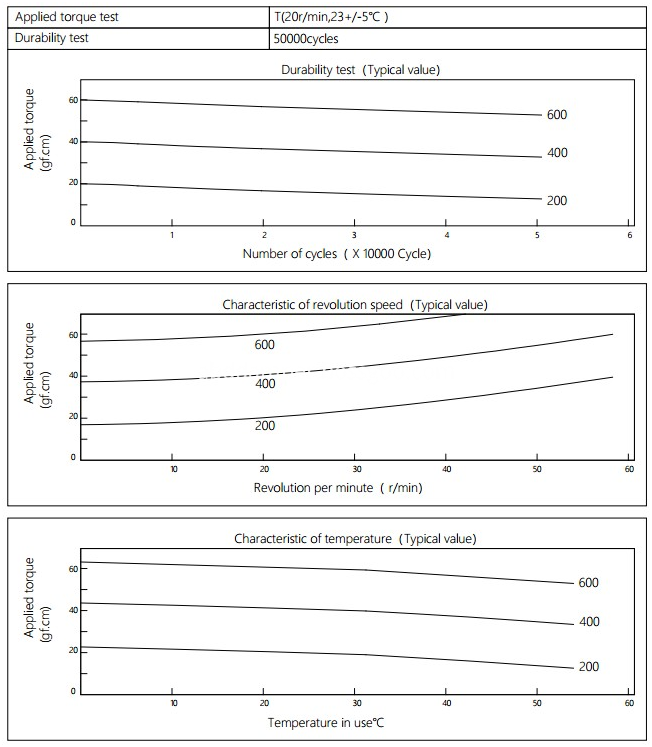

Damper Characteristics



Gear Rotary Damper For Electrical Products


Applied torque: (T)

Test Temperature: 23+/-5

Rotating speed:20r/min

Durability test Method: Clockwise 360 °, 360 ° anti-clockwise

Rotating speed:20r/min

Test Frequency: 1cycle/min

Test Temperature: 23±5

Durability test cycle: 50000cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.





Applications

Electrical products,household appliances,automobile interior decoration,furniture equipment,office equipment,rotating mechanism and many other cover plates, etc.



Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
