KYN28A-12/1600-31.5 Type Switchgear

KYN28A-12/1600-31.5 Type Switchgear

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Bag/Bags
    Delivery Time: 20 Days
    Packaging: non-solid wood package
    Productivity: 3000 sets /year
    Brand: Shaanxi West Power
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 3000 sets /year
    Certificate: ISO 9001-2000

Basic Info

Model No.: KYN28A-12/1600-31.5

Type: Power

Certification: ISO9001:2000

Form: All- packaged Type

Operation Voltage: High Voltage

Size: 3 Uint

Application Range: Power Plants

Shell Material: Steel Plate

Shell Protection Grade: IP30

Anti-corrosion Electrical Switchgear: Intelligence And Easy Control

Product Description

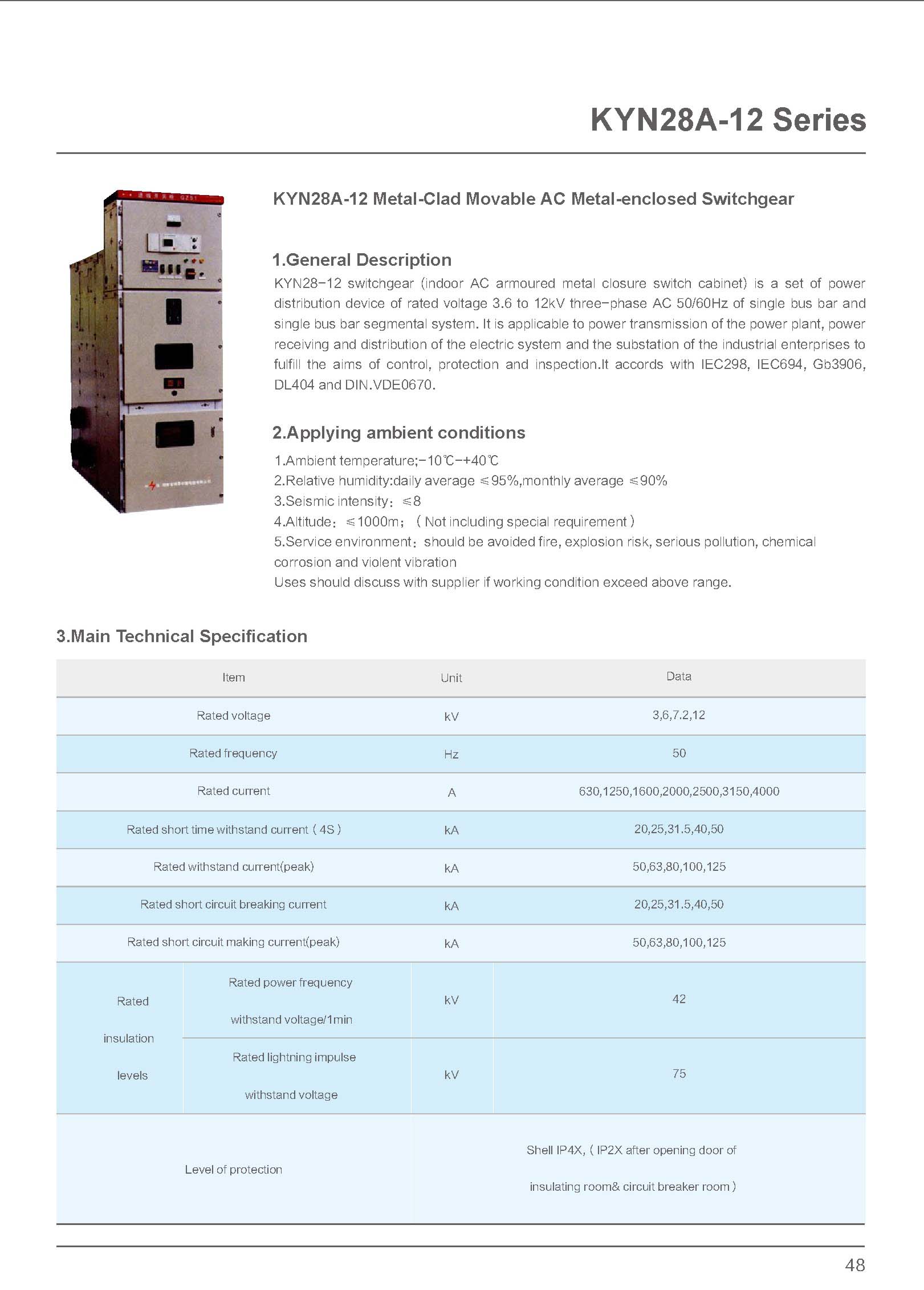

The KYN28A-12 Metal-clad Switchgear is a kind of draw of metal-enclose switch cabniet for inindoor use, and it suits for 3-10kv, 3-phase, 50Hz single busbar and busbar section. The high Voltage Switchgear is primarily utilized for three purposes as listed below.

  • Power distribution for the enterprises, mining plants and manufacturing plants.
  • Power receiving and distribution for secondary power substations,


  • Start up of large-sized, high-voltage moter.etc.

Structure:

1. Switchgear is composed of cubicle and removable parts (so called trolley). The cubicle is separated into several functional compartments by metal sheet, including busbar compartment, Circuit breaker compartment, cable compartment and low voltage com

2. Switchgear removable parts can be equipped with VCB trolley, Voltage Transformer trolley, lightning arrester trolley and fuse trolley.

3. Pressure relief devices are installed above trolley compartment, busbar compartment and cable compartment. Special sealing ring on the door seals the panel door. In case of faults inside the compartments resulting in arc, the pressure is going up inside the switchgear and the pressure relief equipped on the top will open automatically, to release pressure and high temperature gas. In this way, it can ensure the safety of operating staff and the switchgear.

4. The secondary connection of the switchgear and trolleys are conducted via secondary plug coordination. The secondary plug is connected to trolleys through a nylon bellow. The plug is located on the upper right side of switchgear`s trolley compartment. Only when the trolley is on Test position, the secondary plug can be plug in or out. When the trolley is on Operating position, the plug is locked.

5. The switchgear is installed electrical indication device in primary circuit. The device includes high voltage sensors and an indicator, and can indicate high voltage circuit electrical status. It can also cooperate with electromagnetic lock to conduct compulsory latching on operating handle, cubicle door and adjacent cubicles. Thus, it can prevent from withdrawing isolation trolley with loads, prevent earthing switch from energized closing, and prevent from entrance of energized compartment. In this way, it can increase prevention performance of the equipped products.

6. In order to prevent condensation in high humidity or dramatically changed temperature environment, electrical heater is installed separately in circuit breaker compartment and cable compartment, to avoid dielectric accidents in the above conditions.

7. Cable compartment installs additionally earthing copper busbar which goes through adjacent cubicles and with good connection to cubicles. The copper busbar is used for direct earthing components. Since the whole cubicle is joint by aluminum zinc coated steel plates, the cubicle is in good earthing status, thus ensuring safety of operating staff.

KYN28A-12/1600-31.5


KYN28A-12/1600-31.5 Outline Drawing
