High Voltage Line Post Insulators Electric15KV

  • High Voltage Line Post Insulators Electric15KV
  • High Voltage Line Post Insulators Electric15KV
  • High Voltage Line Post Insulators Electric15KV
  • High Voltage Line Post Insulators Electric15KV

High Voltage Line Post Insulators Electric15KV

    Unit Price: 5~15 USD
    Min. Order: 100 piece
    Packaging: Best selling suppliers composite distribution suspension insulator cartons or customized
    Transportation: Ocean,Land,Air,Express,Others
    Supply Ability: 1000 Piece/Pieces per Day suspension insulators
    Port: Shanghai

Product Description

High Voltage Line Suspension Insulator
Product Description
High Voltage Line Suspension Insulator
Composite
Suspension Insulator
Small volume, light weight(is 1/7~1/10 times than ceramic insulator in the same voltage), sheds have good elasticity, not broken, convenient transportation and installation, economy.
High mechanical strength. FRP ROD has high tensile strength, which is 5-10 times than ceramic materials, for core is small cross section, which makes the products small size, light weight, high tensile strength, and easy to manufacture more than 300KN large tons insulators.
High antifouling property, good aging resistance performance, the sheds made of silicone rubber injection mold has good hydrophobicity and migration, which makes insulator high anti pollution flashover voltage and good electric corrosion resistance.
Easy installation and maintenance, can greatly reduce outage loss which cause due to maintenance and maintenance charges which cause by manual labor intensity.
Our company specially produces Composite Insulator for power transmission line, the important structure is made of shed housing,epoxy fiberglass core and metal end fittings.The surface of terminal end fittings is covered with zinc coating(hot-dip galvanization) for corrosion protection.
Type
No.
Of
Sheds
“X”
Length
inches
(mm)
Diameter Inches
(mm)
Leakage Distance Inches (mm)
Dry Arc Distance inches (mm)
Lighting withstan voltage
Wet power frequency voltage
Coupling size
SML Pounds (kN)
D/d
FXBW-10/70
4
310
105/75
350
152
90
40
16
70
FXBW-36/40
9
440
130/90
950
320
230
150
16
40
FXBW-36/100
9
483
130/90
950
320
230
150
16
100
FXBW-35/70
12
660
135/110
1600
526
230
150
16
70
FXBW-35/100
12
680
135/110
1600
526
230
150
16
100
FXBW-66/70
20
980
135/110
2500
826
410
185
16
70
FXBW-66/100
20
1000
135/110
2500
826
410
185
16
100
FXBW-66/120
20
1040
135/110
2500
826
410
185
16
120
FXBW-110/70
26
1190
135/110
3500
1050
550
250
16
70
FXBW-110/100
26
1210
135/110
3500
1050
550
250
16
100
FXBW-110/120
26
1250
135/110
3500
1050
550
250
16
120
FXBW-220/120
54
2470
150/120
6300
2130
1000
395
16
120
FXBW-220/210
56
2470
170/120
6300
2155
1000
395
20
210

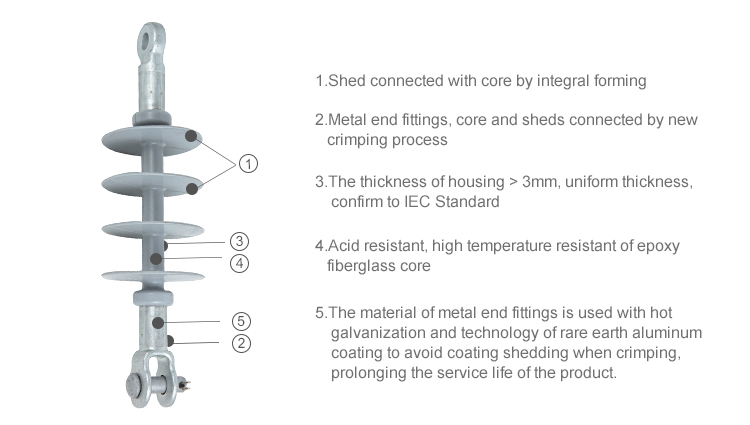

Product structure and advantages

Our company specially produces composite insulator for power transmission line, the important structure is made of shed housing, epoxy fiberglass core and metal end fittings.The surface of terminal end fittings is covered with zinc coating(hot-dip galvanization) for corrosion protection. Compared with same type ceramic and glass insulator, silicone rubber insulator has the following advantages:
(1)Small volume, light weight(is 1/7~1/10 times than ceramic insulator in the same voltage), sheds have good elasticity, not broken, convenient transportation and installation, economy. (2)High mechanical strength. FRP ROD has high tensile strength, which is 5-10 times than ceramic materials, for core is small cross section, which makes the products small size, light weight, high tensile strength, and easy to manufacture more than 300KN large tons insulators. (3)High antifouling property, good aging resistance performance, the sheds made of silicone rubber injection mold has good hydrophobicity and migration, which makes insulator high anti pollution flashover voltage and good electric corrosion resistance. (4)Easy installation and maintenance, can greatly reduce outage loss which cause due to maintenance and maintenance charges which cause by manual labor intensity. (5)Simple production process, short delivery time.
Product Analyasis
High Voltage Line Suspension Insulator
High Voltage Line Suspension Insulator
High Voltage Line Suspension Insulator
High Voltage Line Suspension Insulator

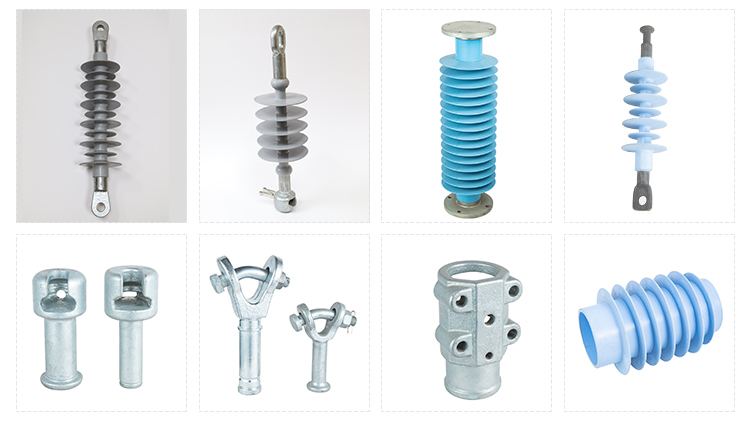

other Products
High Voltage Line Suspension Insulator
Company Introduction
High Voltage Line Suspension Insulator

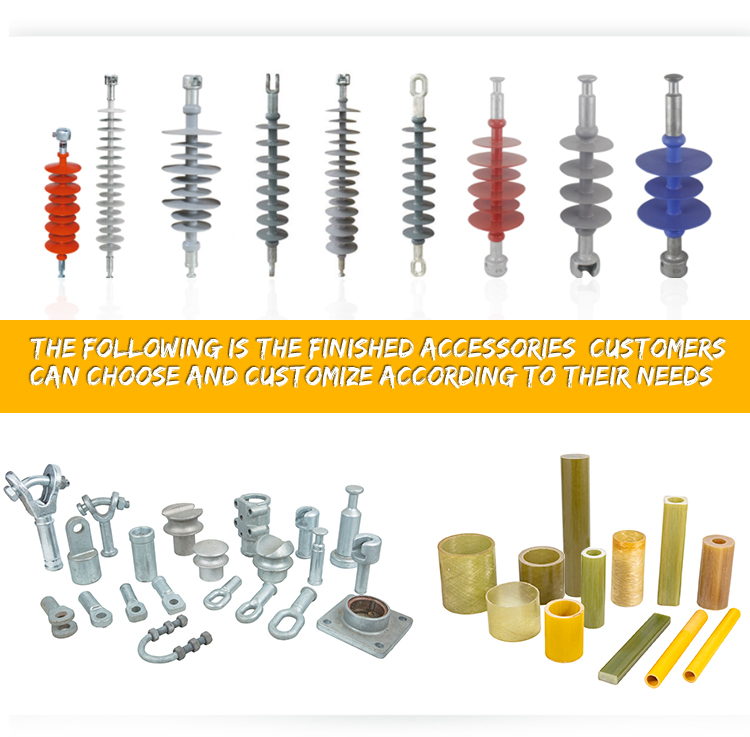

Taizhou HuaDong Insulated Material Co.,Ltd (FORMER Yangzhou Dajieshi FRP products Co.,Ltd)which was found in October in 1994. Our company is mainly engaged in the production of FRP ROD,profiles , related terminal parts and accessories products.The terminal and accessories products such as :various types of composite insulators,silicone rubber,insulator fittings , line fittings and so on.The epoxy fiberglass core we produce as intermediate connector and insulating parts is widely used in all the fields and many kinds of composite insulators production.The profiles and composite insulator are widely used in electric power,electronics, electric railway, construction, automotive and environmental protection field.THIM products are widely sales in North and South America,Africa,Asia ,Europe etc such as USA,Kenya,Korea,India,Vietnam,Russia,Germany,Romania and Other countries and vast areas in our country.THIM is becoming a well-known supplier for insulation products field in the global.
High Voltage Line Suspension Insulator
High Voltage Line Suspension Insulator
FAQ
Q1. Are you a manufacturer or trading company?
A. Manufacturer/ Trading Company.
Q2. How do you make sure your good quality ? A. We use the best raw material , and every single product will go through a series of strict test.
Q3. Will you accept using customer's logo ?
A. Yes, we can offer OEM and ODM. Q4. Can I order some sample for our testing? A. Yes, of course.
High Voltage Line Suspension Insulator

TAIZHOU HUADONG INSULATED MATERIAL CO.,LTD

  • 1
  • 2
  • 3
  • 4



Taizhou HuaDong Insulated Material Co.,Ltd (FORMER Yangzhou Dajieshi FRP products Co.,Ltd)which was found in October in 1994.


Our company is mainly engaged in the production of FRP ROD,profiles , related terminal parts and accessories products.The terminal and accessories products such as :various types of composite insulators,silicone rubber,insulator fittings , line fittings and so on.The epoxy fiberglass core we produce as intermediate connector and insulating parts is widely used in all the fields and many kinds of composite insulators production.The profiles and Composite Insulator are widely used in electric power,electronics, electric railway, construction, automotive and environmental protection field.THIM products are widely sales in North and South America,Africa,Asia ,Europe etc such as USA,Kenya,Korea,India,Vietnam,Iran,Russia,Germany,Romania and other countries and vast areas in our country.THIM is becoming a well-known supplier for insulation products field in the global.

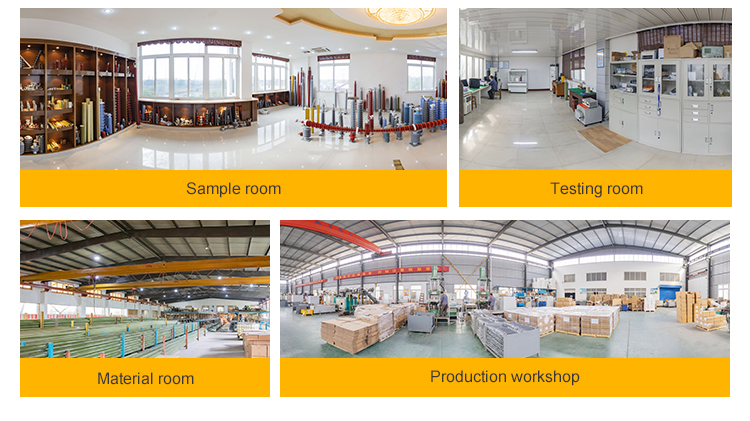

We have a strict quality assurance system,first-class production equipment and inspection instrument,and multiple technical talented persons.


The quality of our products accords with IEC,ISO,ASTM ,ANSI,GB/T,Q/GDW,JB/T,DL etc International standard and National Electric Power Industry related standards.Successively we obtain [Jiangsu province quality assured users, Satisfaction credible enterprise"and[Jiangsu province quality trustworthy AAA brand",[Chinese manufacturer certified supplier" issued by SGS.All of the products are taken the fancy of our clients.

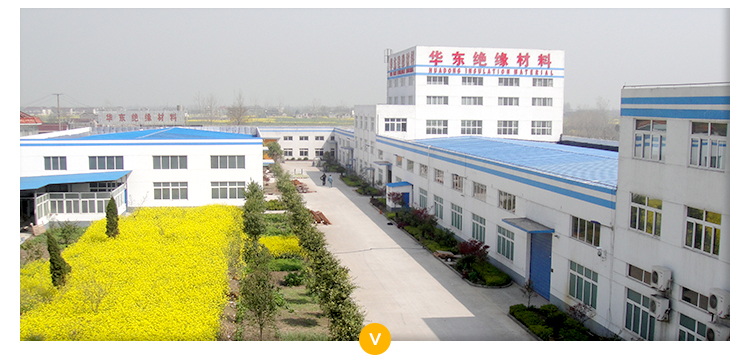

We have already had certain scale through more than 20 years`unremitting efforts.Developping till now,factory area covers 25000 square meters,building area is more than 15200 square meters.We imported full-automatic pultrusion equipment from world-class America CPE company and composite insulator production equipments. Epoxy fiberglass core,complete sets of silicone rubber composite insulator production assembling have a set of unique quality management system.

As in the more and more fierce marketable competition,we will play the waves in the teeth of the storm.Gathering advanced technology,making high- quality power products is our idea,the pursuit of customer satisfaction is our aim,the pursuit of the leading peer is our goal.We sincerely hope to get the care and support from our new and old friends at home and abroad.For sustainable development of insulated material industry to create the future, and make more progress together.
