HVD2 Medium voltage vacuum circuit breaker

  • HVD2 Medium voltage vacuum circuit breaker
  • HVD2 Medium voltage vacuum circuit breaker

HVD2 Medium voltage vacuum circuit breaker

    Payment Type: L/C,T/T,D/P,Money Gram,Western Union,D/A
    Terms of Trade: FOB,CFR,CIF,FCA,CIP
    Min. Order: 1 Piece/Pieces
    Delivery Time: 35 Days
    Packaging: customized
    Brand: ville
    Transportation: Ocean,Land,Air
    Place of Origin: china
    Certificate: GB1984,GB/T11022,DL/T402,THE DL/T403,IEC62271-100,The IEC62271-1

Basic Info

Model No.: HVD2

Product Description

Scope of application

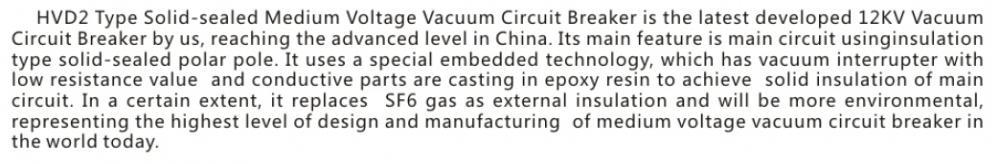

HVD2 type solid-sealed medium voltage vacuum circuit breaker is the latest developed 12KV vacuum circuit breaker by us,reaching the advanced level in China.Its main feature is main circuit using in sulation type solid-sealed polar pole.It uses a special embedded technology,which has vacuum interrupter with low resistance value and conductive parts are casting in epoxy resin to achivev sold insulation of main circuit.In a certain extent,it replaces SF6 gas as external insulation and will be more environmental,representing the highest level of design and manufacturing of medium voltage vacuum circuit breaker in the world today.

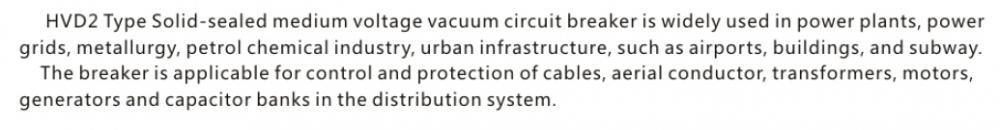

HVD2 type solid-sealed medium voltage vacuum circuit breaker is widely used in power plants,power grids,metallurgy,petrol chemical industry,urban infrastructure,such as airports,buildings,and subway.

The breaker is applicable for control and protection of cables,aerial conductor,transformers,motors,generators and capacitor banks in the distribution system.

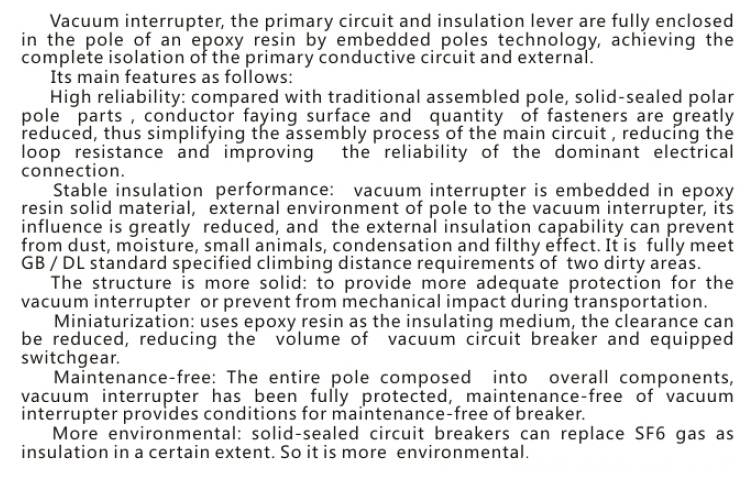

Vacuum interruper,the primary circuit and insulation lever are fully enclosed in the pole of an epoxy resin by embedded poles technology,achiveing the complete isolation of the primary conductive circuit and external.

Its main features as follows:

High reliability:compared with traditional assembled pole,solid-sealed polar pole parts,conductor faying surface and uantity of fasteners,are greatly reduced,thus simplifying the assebly process of the main circuit,reducing the loop resistance and improving the reliability of the dominant electrical conection.

Stable insulation performance:vacuum interrupter is embedded in epoxy resin solid material,external environment of pole to the vacuum interrupter,its

influence is greatly reduced,and the external insulation capability can prevent from dust,moisture,small anirnals,condensation and filthy effect.It is fully meet GB/DL standard specified climbing distance requirements of two dirty areas.

The structure is more solid:to provide more adequate protection for the vacuum interrupter or prevent from mechanical impact during transportation.

Mini aturization:uses epoxy resin as the insulation medium,the clearance can be reduced,reducing the volume of vacuum circuit breaker and equipped switchgear.

Maintenace-free:The entire pole composed into overall components,vacuum interrupter has been fully protected,maintenance-free of vacuum interrupter provides conditions for maintenance-free of breaker.

More environmental:solid-sealed circuit breakers can replace SF6 gas as as insulation in a certain extent.So it is more environmental.
